Brand Name : Linsheng Auto II MaxM
Model Number : LS-PAT-P2
Place of Origin : China
MOQ : 1 piece
Price : USD49/PC~USD299/PC
Payment Terms : L/C, T/T, PayPal
Supply Ability : 1000pcs/month
Delivery Time : 2 weeks
Packaging Details : Carton
Working voltage : 12/24/36/48V DC
Load force : Max.350KG (Push); 200KG(Pull)
Max. speed : 2.4mm/s (full load); 56mm/s (free load)
Stroke : 20mm -1000mm
Signal output : Without/ POT / Hall sensors
IP rating : IP66
Color : Silver
Limit switch : Built in
Cable length : 1000mm
Long Stroke Customizable DC Actuator IP66 Outdoor 350kg Light Industrial Use
Compact high-thrust linear actuator LS-PAT-P2 with customizable long stroke from 20mm to 1000mm and IP66 protection. Perfect for outdoor automation projects such as sweepers and cleaning machines.
Specifications:
| Model | LS-PAT-P2 |
| Voltage | DC12V/24V/36V/48V |
| Max. load force | 3500N |
| Stroke (Customized) | 20mm - 1000mm |
| Signal output (Optional) | POT / HALL sensors |
| IP rating | IP54 / IP66 |
| Color | Silver |
Features:
* Long stroke customizable options
* Compact size with high thrust force
* IP66 protection for outdoor project
Applications:
Automate cleaning machine such as sweepers




We offer a variety of control systems compatible with this light-industrial actuator for automation applications. Welcome to your inquiry for more detaiils!

About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
|
|

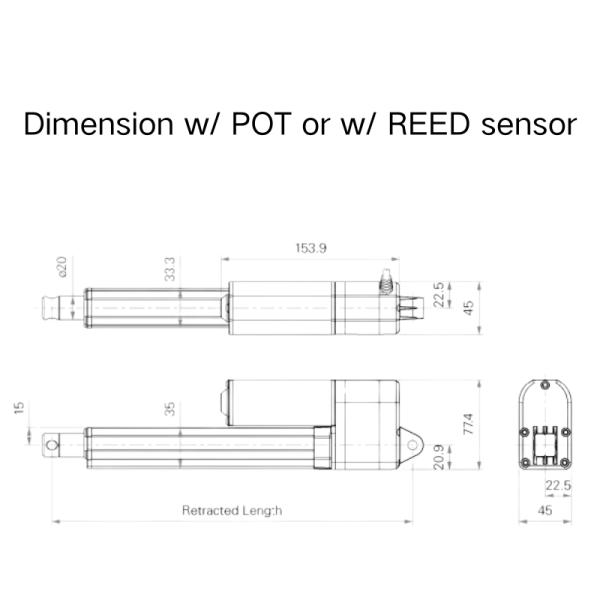

Long Stroke Customizable DC Actuator IP66 Outdoor 350kg Light Industrial Use Images |
